1.4.1.5 - Norsk Data hardware - ND-100

Description

• The ND-100 trace adapter used in a ND-100 configuration.

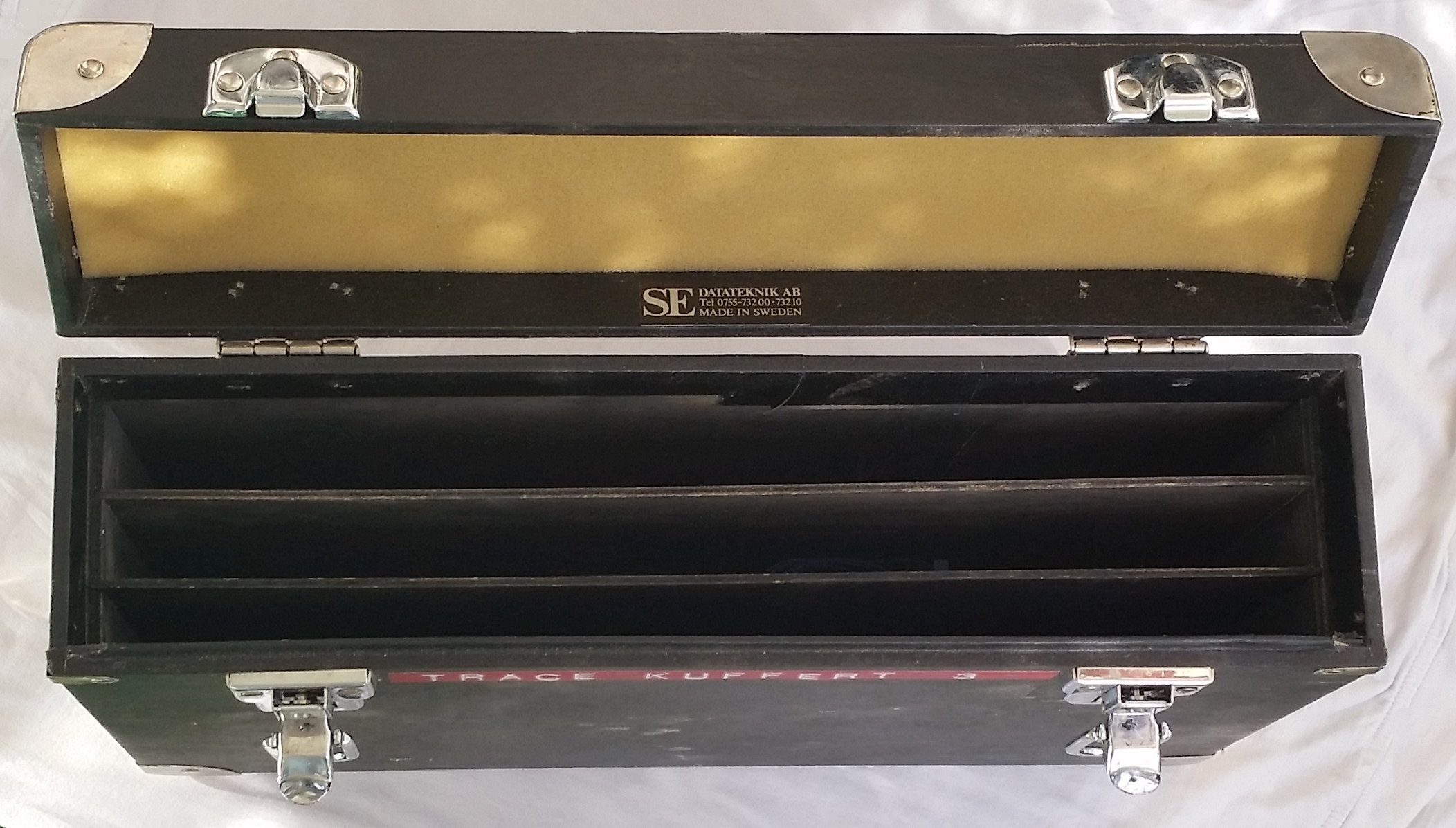

• Here is a complete trace suitcase (no. 3).
  • The ND-100 trace card
  • This trace adapter
  • Dummy plug for the ND-100 bus (where IDENT and GRANT signals are passed on and all other pins are cut off)

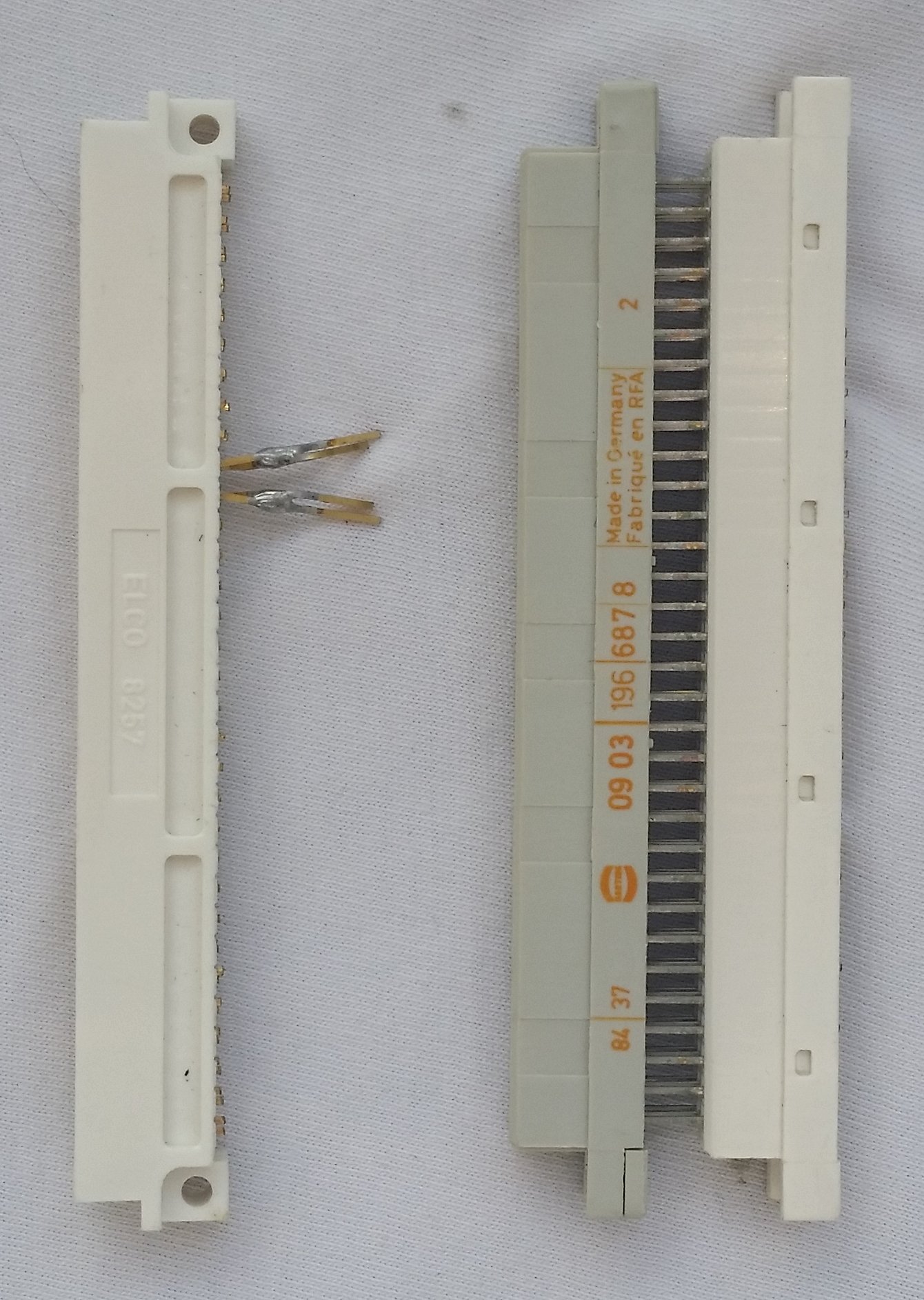

  • Adapter for the ND-100 backwiring
  • Trace cable (ND-327734) x 2 pieces
  • Trace software to investigate a stored trace
  • Trace manual
• Print: A   ECO: C
• PCB size 367 x 280 mm, 4 layers
• Release date xx. xxx. xxxx

Chipset

• None

LEDs

• None

Straps

• None

Switches

• None

Connectors

• (A) Not used
• (B) CPU and MMS bus
• (C) Standard ND-100 system bus
