1.4.1.3 - Norsk Data hardware - NORD-10

Description

• HDLC DMA shadow.

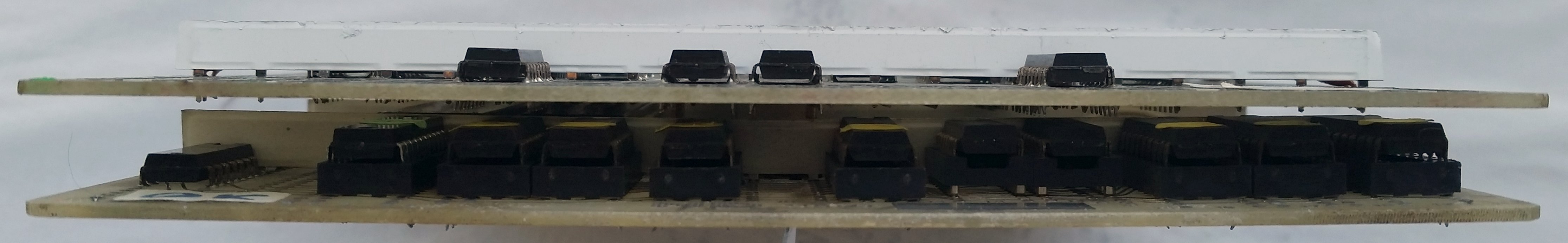

• This card is stacked on top of the ND-322085 card.
• The onboard memory is 16 pieces of SRAM, 256 x 1 bit x 16 pieces (total 4 KB).
• Print: B   ECO: _
• PCB size 156 x 179 mm, 2 layers
• Release date 01. Jan. 1981

Chipset

• 213 1935 or
  SN74201 - SRAM x 16 pieces

LEDs

• None

Straps

• None

Switches

• None

Connectors

• Standard NORD-10 bus
• Interconnectors to the PCB 1151
